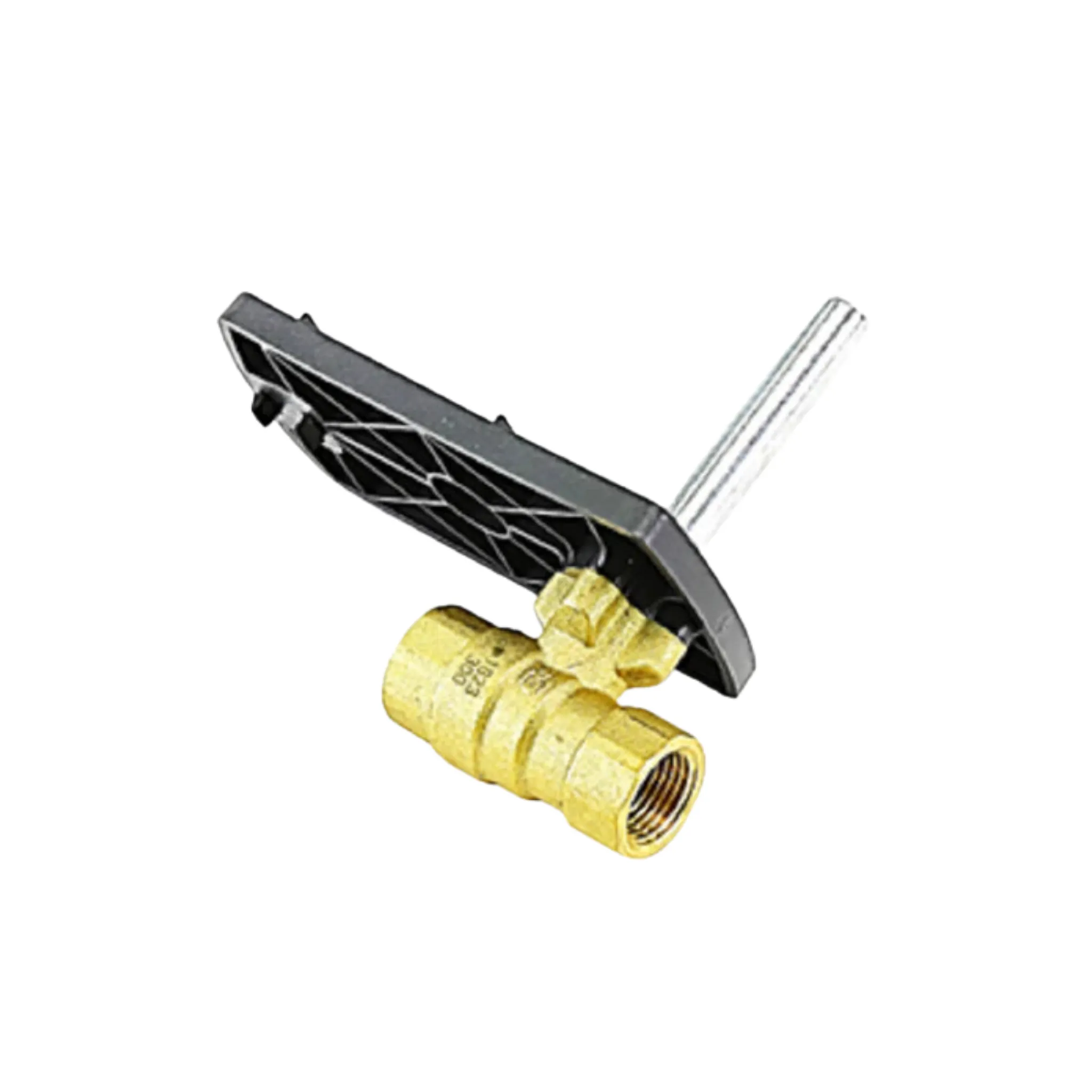

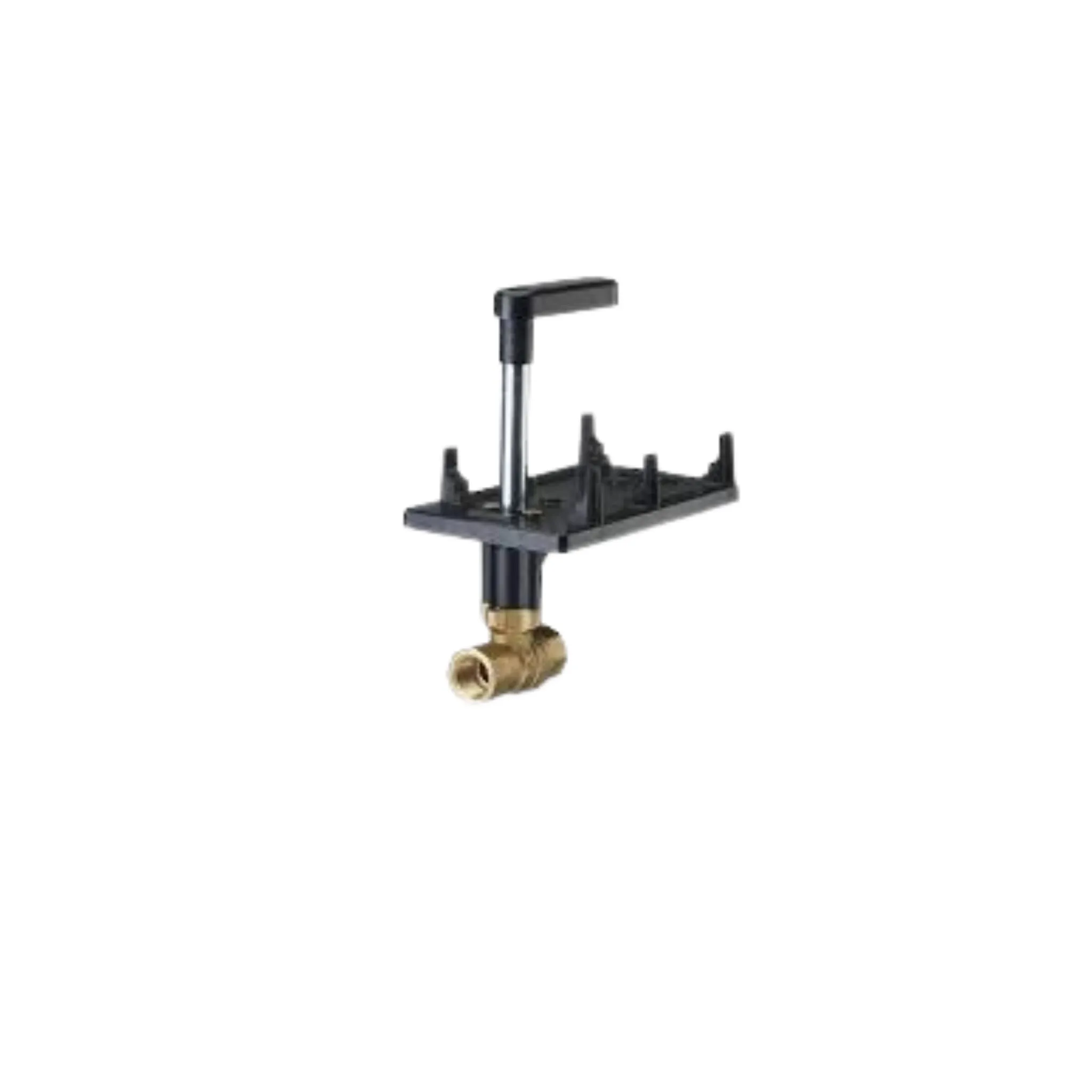

Siemens 2-Way Ball Valve The 599 Series 2-Way Ball Valves are coupled with OpenAir™ actuators to provide equal percentage flow control. The Ball Valves are 1/4-turn rotary control valves. Features: 200 psi close-off with ANSI Class IV leakage for all line sizes and actuators. Available with chrome-plated brass ball and brass stem or stainless steel ball and stem. Blow-out proof stem withstands high pressure. Universal mounting plate. Actuator and plate can be rotated (90-degree increments). Standoffs provide a thermal barrier between the actuator and the mounting plate. Operating handle for manual operation.

Features:

200 psi Close-Off With ANSI Class IV Leakage
Blow-Out Proof Stem Withstands High Pressure
Universal Mounting Plate

Specifications:

Manufacturer: Siemens Building Technology
Manufacturer Part Number: 599-10300
Product Type: Valve
Material: Brass Body with Chrome Plated Ball and Brass Stem
Port Configuration: 2-Way
Valve Body Style: Ball
Thread Size: 1/2" NPT
Flow Rate: 0.4 Cv
Close-Off Pressure: 200 PSI
Temperature Range: 35 to 250 Degrees F
Medium: Water, Glycol Solutions Up To 50%
Flow Characteristic: Modified Equal Percentage
Dimensions: 8.4" x 5.1" x 3.45"
Weight: 2.0 lb.
